Nomad 13 Solar Panel |
|
|
QUICK FEATURES
The Nomad 13 delivers an ultra-compact yet powerful solar panel that enables you to charge your handheld devices
directly from its USB and 12 Volt DC charging ports.
Stay Charged
Use the power of the sun to keep your GPS or smartphone charged
Easy to Use
Use solar power with USB or 12V devices
Portable & Powerful
Collect 13 Watts of power from the sun. Foldable, rugged design, and weather resistant.
WHAT CAN THE NOMAD 13 SOLAR PANEL CHARGE?
The Nomad 13 will directly charge most USB and 12V devices. Most handheld USB devices, include: Cell phone, smart phone, GPS, MP3 player |
WHAT GOAL ZERO PRODUCTS WORK BEST WITH THE NOMAD 13?
Goal Zero Switch 8 Recharger, Guide 10 Plus, Sherpa 50 Recharger, Rock Out Portable Speaker |

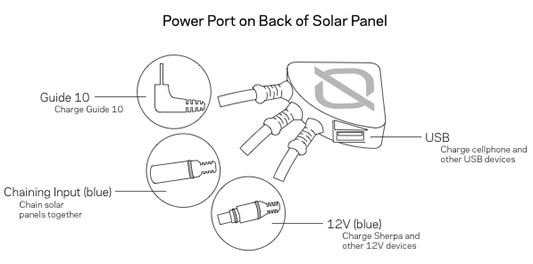

CAN I USE THE USB AND 12V PORTS TO CHARGE DEVICES SIMULTANEOUSLY?
Yes. The Nomad 13 will split the incoming solar power between the two ports to charge devices simultaneously. Some
devices may not be compatible. |
|
HOW DO I USE THE NOMAD 13?
1: Open and remove protective file from solar cells (film may already have been removed)
2: Position and angle panel towards the sun
3: Plug your device into one of the charging ports
USAGE
| Charges from the following: |
Approx. Charge Time: |
| Guide 10 Plus |
3-5 hours |
| Goal Zero Yeti 150 |
26-52 hours |
| Sherpa 50 v2 |
8-16 hours |
| 12V devices (satellite phone, GPS) |
1-4 hours |
| USB devices (cell phone, MP3 player) |
1-4 hours |
| SOLAR PANEL |
| Rated wattage |
13W |
| Cell Type |
Mono crystalline |
| Open-circuit Voltage |
20-22V |
| PORTS |
| USB port |
5V, up to 1A (5W max) regulated |
| Solar port (blue, 8mm) |
14-22V, up to 0.9A (13W max) |
| Mini solar port (2.5mm) |
6.5V, up to 1.1A (7W max) regulated |
| GENERAL |
| Weight |
1.6 lbs (0.72 kg) |
| Dimensions |
10.5 x 9 x 1 in (26.7 x 23 x 2.5 cm) |
| Warranty |
12 Months |
| Certifications |
FCC, CE, ROHS |
| Optimal Operating Temp. |
32-104 F (0-40 C) |
|
|
|
