TLC200 Pro


The World's 1st HDR Time Lapse Video Camera
Brinno TLC200 Pro built with high performance HDR (High Dynamic Range) image sensor, so you can take beautiful time lapse video even against strong light! Shockingly simple awesome HDR Time Lapse videos at the push of a button!


HDR Time Lapse- Wai Mu Shan (Brinno TLC200 Pro)


INSTANT HDR TIME LAPSE VIDEOS
With Brinno Instant Video technology, once your video is shot, it's actually a Time Lapse video  and not a series of JPEGs. No stitching, no converting!
HIgh Performance HDR Image Sensor
Brinno TLC200 Pro built with high performance HDR (High Dynamic Range) image sensor, High Dynamic Range allows you take beautiful time lapse video even against strong light! Ultra-High Pixel Size allows you take clear time lapse video even in a low light environment!
Ultra-High Pixel Size
4.2m

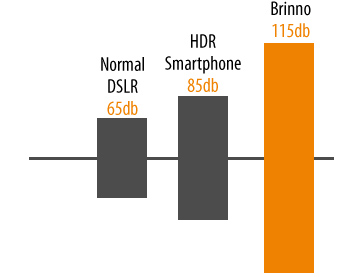

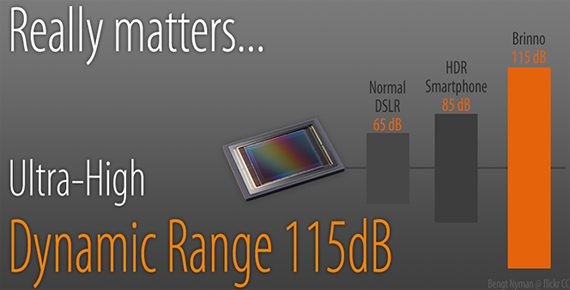

Ultra-High Dynamic Range
115dB

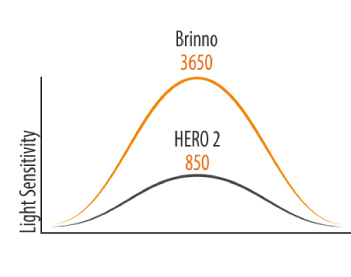

Ultra-High Light Sensitivity
3650mV/Lux-sec

INTERCHANEABLE LENS
With CS-mount interface, you always can choose the suitable lenses for your needs.


HDR Time Lapse- Wai Mu Shan (Brinno TLC200 Pro)







HDR Video Sensor
High performane HDR video sensor, capture Time Lapse video in any light!

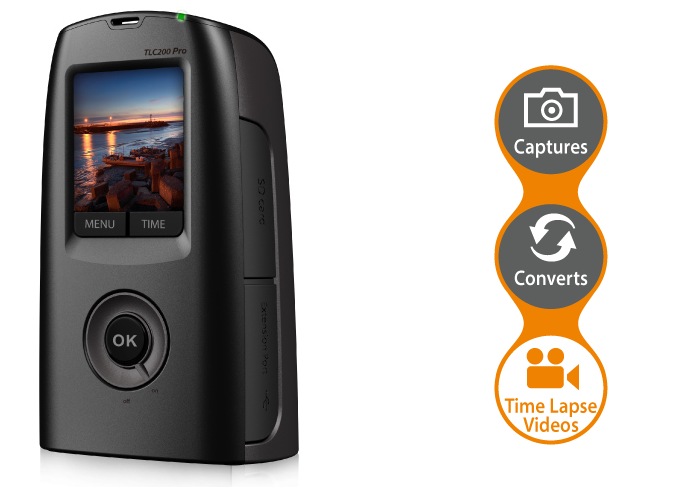

Instant Video
TLC200 Pro captures and converts thousands of photos into a Time Lapse video.

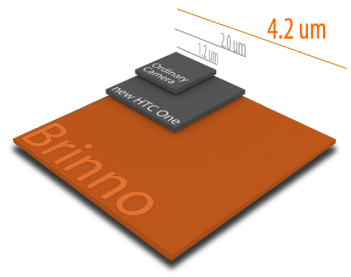

4.2 µm pixel size
Awesome low light recording and sharper images.

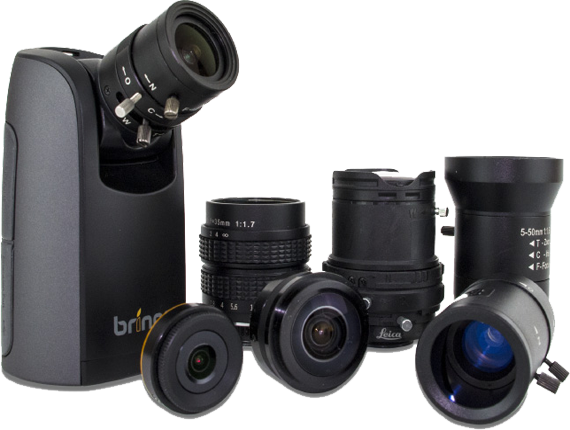

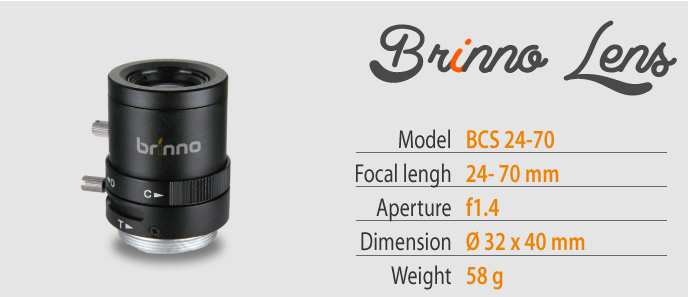

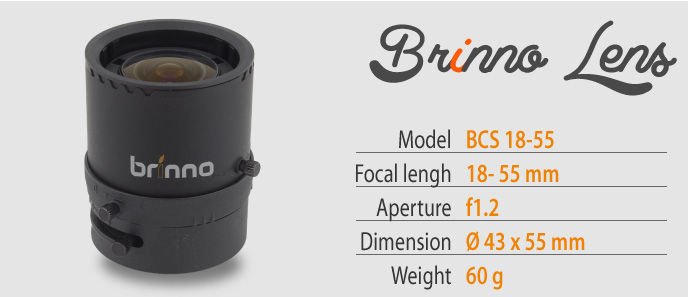

Interchangeable Lens
Don't like the kit lens? Fine, chose the lens you want.

f2.0 Aspherical lens
Sharper, brighter images with this aspherical glass lens.

Super Wide Angle
112˚Field of View.
A wider area to be recorded creating panoramic images!



Scene Daylight
Time interval Frames captured Days
ASAP 168000 1
1 sec 200000 2.3
2 sec 244000 5.6
5 sec 204000 11.5
10 sec 145000 17.0
20 sec 108000 25.0
30 sec 84500 29.0
1 min 51000 35.0
5 min 12300 42.0
10 min 6300 43.0
1 Hr 1070 44.0
4 Hr 269 44.0
24 Hr 45 45.0
Scene Twilight
Time interval Framescaptured Days
2 sec 67400 1.6
5 sec 55500 3.2
10 sec 51300 5.9
20 sec 51000 11.5
30 sec 45000 15.0
1 min 33700 23.0
5 min 10900 38.0
10 min 5900 41.0
1 Hr 1060 44.0
4 Hr 269 44.0
24 Hr 45 45.0
Scene Night
Time interval Frames captured Days
5 sec 39000 2.3
10 sec 30000 3.5
20 sec 28100 6.5
30 sec 26200 9.0
1 min 21800 15.0
5 min 9300 32.0
10 min 5400 37.0
1 Hr 1040 43.0
4 Hr 268 44.0
24 Hr 44 44.0
Scene Moon
Time interval Frames captured Days
7 sec 18300 1.5
10 sec 18800 2.2
20 sec 16000 3.5
30 sec 15500 5.0
1 min 13800 9.0
5 min 7400 25.0
10 min 4700 32.0
1 Hr 1000 42.0
4 Hr 266 44.0
24 Hr 44 44.0

Camera
Model TLC 200 Pro
LCD Screen 1.44" TFT LCD
Rotate Lens 120°
Waterproof Optional, (In use with Weather Resistant Housing (ATH110))

Capture Mode
Time Lapse Auto generate Time Lapse video
Stop Motion Optional, (In use with Shutter Line (ATS100))
Motion Activated Optional, (In use with Motion Sensor (ATM100))

Image Sensor
Type 1/3" HDR sensor
Dynamic Range 115db
Resolution 1.3 Mega pixel
Pixel size 4.2um
Sensitivity 3650mV/lux-sec (Ultra good low light quality)


Optics Lens
Aperture F2.0
Lens type Aspherical Lens (glass lens)
Field of View 112°
Focal Length 19 mm (35mm equivalent)
Focus Distance Manual focus from 1 cm to ∞ (factory setting: 40 cm )


Shooting Setting
Scene Daylight, Twilight, Night, Moon, Star
White Balance Auto, Day, Shade, Cloudy, Fluorescent Light (Cool), Fluorescent Light (Warm), Tungsten Light
Custom Image Exposure, Saturation, Contrast, Sharpness



Recording
Time Lapse Video Format: AVI

Resolution: 1280x 720
Still Image Format: JPEG (only for using Shutter Line)

Resolution: 1280x 720, 640x 480
Memory Storage SD Card (Supported up to 32 GB)


Time Interval
ASAP Captures 3~ 5 photos in 1 second
Custom From 1 second to 24 hours


Power
Power source Battery: 4 AA Batteries

DC IN: 5V (Micro USB connector)
Battery Life 2 second time interval, captures 240,000 frames


Camera Body Dimensions
Size (DxWxH) 64x 52x 107 mm
Weight 140 g (without batteries)
Color Black



What's in the Box:

  • HDR TimeLapse Camera (TLC200 Pro)

  • 4GB SD Card*

  • Lens Cover

  • Screwdriver

  • Screw

  • User Manual

    SD card may or may not be included, please read the package contents listing.
