Guide 10 Plus Solar Kit |
|
|
Go-anywhere, rechargeable battery pack keeps your handheld gear going strong. Charge AA/AAA batteries from the
sun or any USB port, then power your phone, MP3, GPS, or perk up your tablet in a pinch.
- Directly charge a smartphone in 1 hour
- Built-in LED light runs for 150+ hours per charge
- Charge up removable AA/AAA batteries from USB or sun
WHAT DOES THE GUIDE 10 PLUS POWER?
Use with most USB powered devices and all devices using AA/AAA batteries. The Guide 10 Plus is best used with your smaller USB power devices. The chart below gives approximate power given to the most common devices the Guide 10 Plus powers. |
 |
Cellphones
Smartphones
MP3 players
Tablets
E-Readers |
Headlamps
GPS
Camera
Personal gaming devices
...and more |

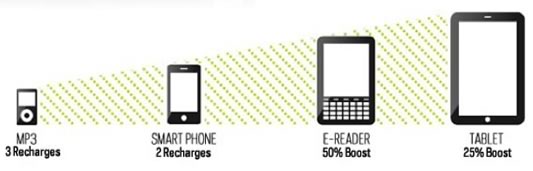

HOW POWERFUL IS THE GUIDE 10 PLUS?
The Guide 10 Plus is best used with your smaller USB powered devices. The chart below gives approximate power given to the most common devices the Guide 10 Plus powers. |
 |
HOW DO I USE THE GUIDE 10 PLUS?
If you can plug in a USB cord you can use a Guide 10 Plus. |
 |

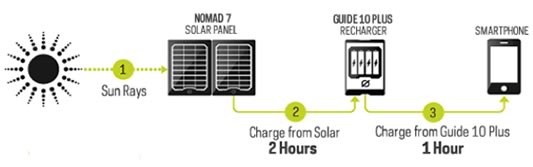

HOW DO YOU CHARGE THE GUIDE 10 PLUS?
There are two ways to recharge the Guide 10 Plus.
1: From any USB power source such as your laptop - takes about 6 hours.
2: Plug it into a solar panel and place in the sun - takes about 2 hours. |
 |
USAGE
| Charges from the following: |
Approx. Charge Time: |
| Any USB Power Source |
6-10 hours |
| GOAL ZERO Nomad 3.5 (solar port) |
6-8 hours |
| GOAL ZERO Nomad 7 (solar port) |
3-6 hours |
| INPUTS |
| USB-mini port |
5V, up to 0.8A max (4W) |
| Solar port |
6.5V, 1.5A max (7W) |
| OUTPUTS |
| Batteries |
4 x AA or AAA** NiMH cells |
| USB Standard Port |
5.0V, up to 1.0A (5W) |
| Flashlight |
100mW white LED, 100+ hours* |
| INTERNAL |
| Battery Capacity |
11 Wh*, (5V, 2300 mAh) use only NiMH cells |
| Life-span |
hundreds of cycles* |
| Shelf Life |
12 months* |
| GENERAL |
| Weight w/Batteries |
0.4 lbs (0.18 kg) |
| Dimensions |
2.5 x 4 x 0.75 in (6 x 10 x 2 cm) |
| Warranty |
12 Months |
| Certifications |
FCC and CE |
| Optimal Operating Temp. |
32-104 F (0-40 C) |
*When using GOAL ZERO NiMH rechargeable low self-discharge AA cells.
**AAA Cells require an adapter, which is included with AAA battery purchase. |
|
|
|
